| 원래 장소: | 중국산 |
| 브랜드 이름: | Infinity Machine Inc. |
| 인증: | ISO |
| 모델 번호: | IC2186 |
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | Negotiate |
| 포장 세부 사항: | 투명시트+스펀지+나무상자 |
| 배달 시간: | 주문 확인 후 35 ~ 45 일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 달 당 50 세트 |
| 제품명: | 유연한 케이블 굴곡 테스트 기계 | 모델: | IC2186 |
|---|---|---|---|
| 애플리케이션: | 플러그로 연결된 케이블에 대한 굽기 내구성 테스트를 적용합니다. | 표준: | GB2099-2008、IEC 60884-1:2022 |
| 지그: | 6세트 | 굽힘 각도: | 1~180° (±90°) (조정 가능) |
| 굽힘 속도: | 오후 10~60시 (조정 가능) | 짐: | 50, 100, 200, 300, 500g (각 6g) |
| 힘: | AC220V 또는 AC120V | 보증: | 1년 |

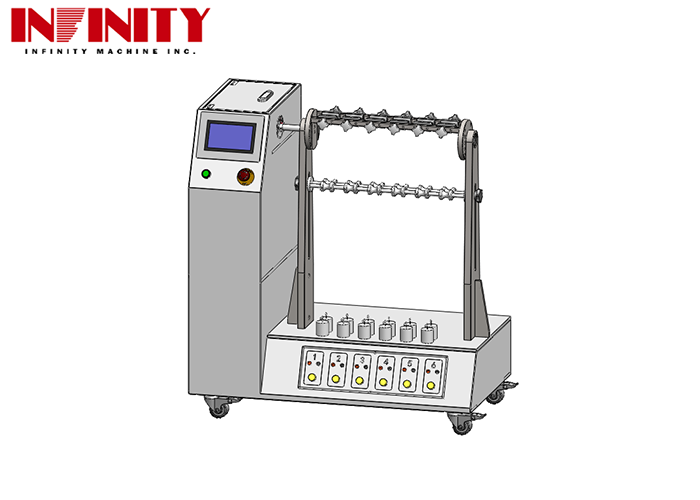

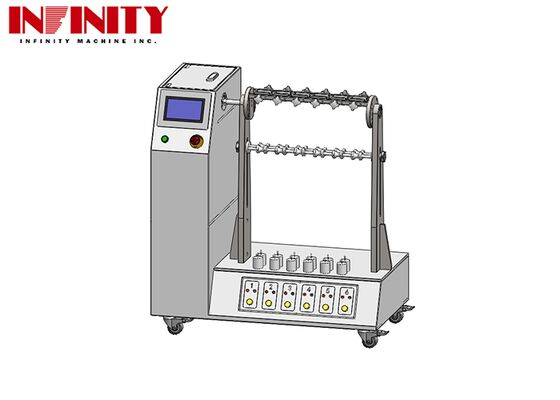

This flexible cable flexing test equipment features adjustable bending angles from 1° to 180° and complies with IEC 60884-1 standards. Designed for bending endurance testing of cables connected with plugs, this machine evaluates cable durability by simulating real-world bending conditions.
Model: IC2186
The IEC 60884-1:2022 flexible cable flexing test machine is engineered for comprehensive bending endurance testing of cables connected with plugs, providing reliable performance and accurate results.
This testing machine performs bending endurance tests for cables connected with plugs. The sample is securely fixed on the jig with appropriate weights applied to the cable. The jig then swings right and left at the preset angle. After completing the required rotation cycles, the test automatically stops for cable inspection. For electrified cable testing, the machine counts rotation cycles until cable failure and automatically stops when the cable breaks and disconnects from electricity.
| Specification | Details |
|---|---|
| Model | IC2186 |
| Standards | GB2099-2008, IEC 60884-1:2022 |
| Jig | 6 sets |
| Bending Angle | 1~180° (±90°) Adjustable |
| Bending Speed | 10~60 c.p.m Adjustable |
| Counter | 6 individual counters |
| Load | 50, 100, 200, 300, 500g (6 per each) |
| Weight | 132kg |
| Dimension (W*D*H) | 960*530*850mm |
| Power Supply | AC220V 3A or specified by user |
Product Packaging: The flexible cable flexing test machine is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.
Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
Contact our sales team for personalized product recommendations based on your specific testing requirements.
