Name: Robotic Cable Torsion Test Machine Flexible Cable Torsion Testing Machine CRIA 0003.2-2016 Standard
Brand: Infinity Machine International Inc.
SKU: IC2274
Price: 50,050.00 USD
Availability: InStock

홈 제품 소개 케이블 굽기 기계

Robotic Cable Torsion Test Machine Flexible Cable Torsion Testing Machine CRIA 0003.2-2016 Standard

제품 상세 정보:

원래 장소:	메이드 인 차이나
브랜드 이름:	Infinity Machine Inc.
인증:	ISO
모델 번호:	IC2274

결제 및 배송 조건:

최소 주문 수량:	1
가격:	Negotiate
포장 세부 사항:	투명시트+스펀지+나무상자
배달 시간:	주문 확인 후 35 ~ 45 일
지불 조건:	티/티
공급 능력:	달 당 50 세트

접촉

상세 제품 설명

제품명:	로봇 케이블 비틀림 시험기	모델:	IC2274
애플리케이션:	자동 케이블 비틀림 시험기는 다심 케이블 및 통신 케이블의 비틀림 시험에 적합합니다.	표준:	중국 로봇 산업 연합(China Robot Industry Alliance), CRIA 0003.2-2016 산업용 로봇용 특수 케이블 - 2부: 테스트 방법과 같은 표준을 준수합
작업 스테이션:	4	비틀림 각도:	1~±180° /±270° / ±360°(맞춤형)
테스트 속도:	1~30사이클/분(조정가능)	힘:	AC220V 또는 AC120V
보증:	1년
강조하다:	Robotic Cable Torsion Test Machine , Flexible Cable Torsion Tester , CRIA Standard Cable Testing Machine

Robotic Cable Torsion Test Machine

Comprehensive testing equipment for multi-core cables and communication cables compliant with CRIA 0003.2-2016 standards for industrial robot special cables.

Product Overview

Model: IC2274

Compliance: China Robot Industry Alliance CRIA 0003.2-2016 Special Cables for Industrial Robots — Part 2: Test Methods

Application

Designed for torsion testing of multi-core cables and communication cables. Performs repeated torsion tests on longitudinally installed metal wires to evaluate plastic deformation resistance and detect defects during repeated torsion testing.

Technical Specifications

Item	Specification
Test Station	4 stations (Customizable)
Sample Diameter	3~15mm (Customizable)
Specimen Test Length	500~1000mm (Customizable)
Sample Torsion Speed	1~30 cycles/min (Adjustable)
Torsion Angle	1~±180° /±270° / ±360° (Customizable)
Control Method	Touch screen control
Counting Digits	0-99999999 cycles
Motor	Servo motor (Japan)
Machine Weight	Approx. 400 Kg
Working Power Supply	AC220V, 50Hz ; AC120V, 60Hz (specifiable)
Equipment Power	1.8KW
Equipment Dimensions	W1700D740H1700mm

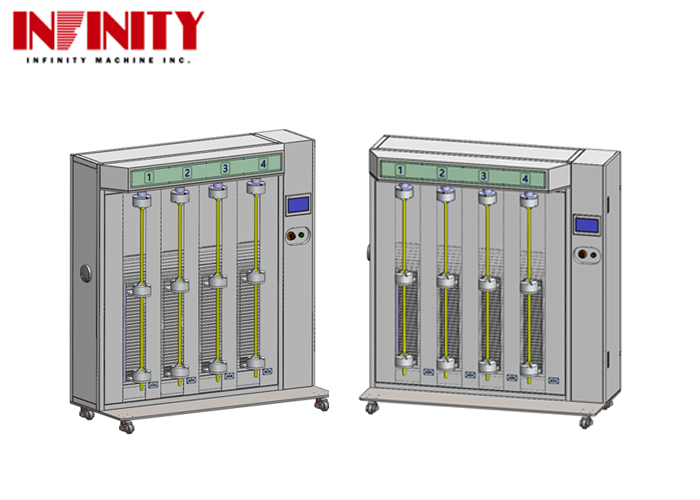

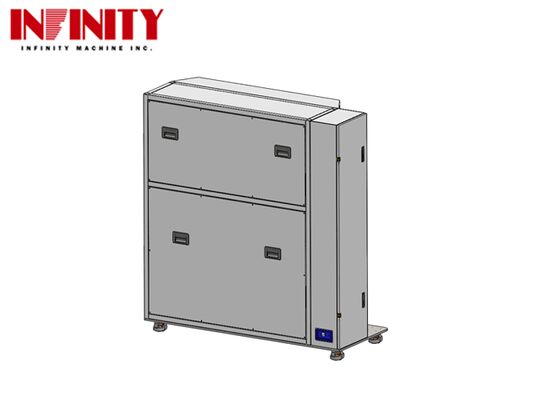

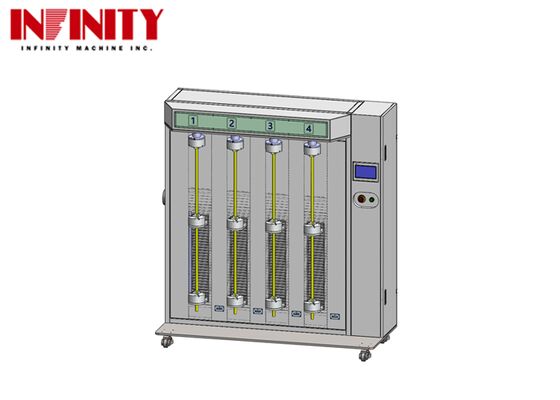

Product Appearance

Packaging and Shipping

Product Packaging: The robot wire torsion tester is securely packaged in a wooden crate to prevent damage during transportation. The crate is sealed and labeled with product information for easy identification.

Shipping: Shipping is handled by reliable and experienced shipping companies. Transportation is arranged to ensure timely delivery and safe handling. Customers receive tracking information to monitor shipment status.
