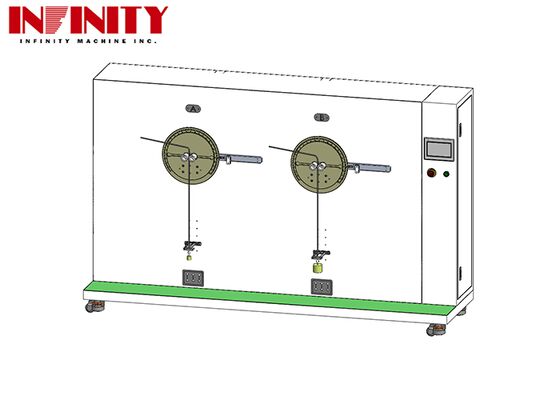

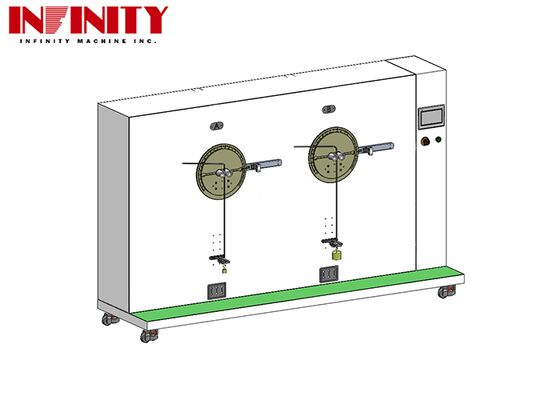

Name: ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50,050.00 USD
Availability: InStock

홈 제품 소개 구부리는 시험 기계

ISO 19642-2 Compliant Flex-Cycle Testing Machine with 10~60rpm Adjustable Speed and ±90° Angle Range for Automotive Cables

제품 상세 정보:

원래 장소:	중국산
브랜드 이름:	Infinity Machine Inc.
인증:	ISO
모델 번호:	C5092

결제 및 배송 조건:

최소 주문 수량:	1
가격:	Negotiate
포장 세부 사항:	투명시트+스펀지+나무상자
배달 시간:	주문 확인 후 35-40일
지불 조건:	티/티
공급 능력:	한 달에 50 세트

접촉

상세 제품 설명

제품명:	SFF-8417 다중 도체 케이블 플렉스 사이클 테스트 절차용 플렉스 사이클 시험기	모델:	C5092
애플리케이션:	케이블 순환 케이블 굽힘 시험기는 다중 전선 케이블, 통신 케이블, 이어폰 케이블 등의 굽힘 시험에 적합합니다.	테스트 표준:	SFF 8417 다중 도체 케이블 플렉스 사이클 테스트 절차; ISO 19642-2:2023 자동차 케이블 순환 굽힘 테스트
테스트양:	2개	테스트 속도:	10~60rpm±2cpm (13rpm을 빈번한 사용자)
각도 범위:	±90° / 0°~180°	시험 주기는:	1999,999번
힘:	단상 AC220V 또는 120V±10%, 50/60Hz	보증:	1년

Flex-Cycle Testing Machine for SFF-8417 Multi Conductor Cable Flex Cycle Test Procedure

Cable Bending Fatigue Test Machine for Vehicle Wiring
Automotive Cables Cyclic Bending Fatigue Test Equipment
Model: C5092 - Cable Cycle Flex Tester compliant with ISO 19642-2 standards

Purpose and Application

The cables cyclic bending test machine evaluates the bending fatigue performance of various cable types including:

Multi-conductor cables
Communication cables
Data cables
Robot cables
Automotive cables
Earphone wires
Machine cables

The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left-right rotational movements to assess cable conductivity after repeated cycles and evaluate overall cable quality.

Compliance Standards

ISO 19642-2 Road vehicles - Automotive cables - Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2--2024
SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure

Technical Specifications

Parameter	Specification
Model	C5092
Test Amount	2 PCS
Test Speed	10~60rpm±2cpm (Frequent user of 13rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1～999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) 4 sets
Diameter of Rotation Plate	275mm
Weights	100g, 200g, 500g, 1000g (or customize)
Dimension (WDH)	12807241320mm
Weight	350kg
Power Supply	Single phase AC220V / AC120V 50/60Hz 5A or specified by user

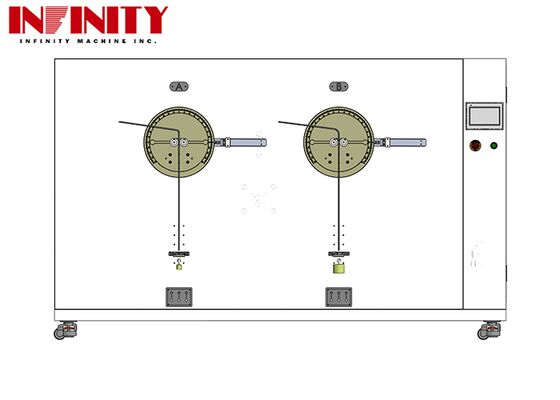

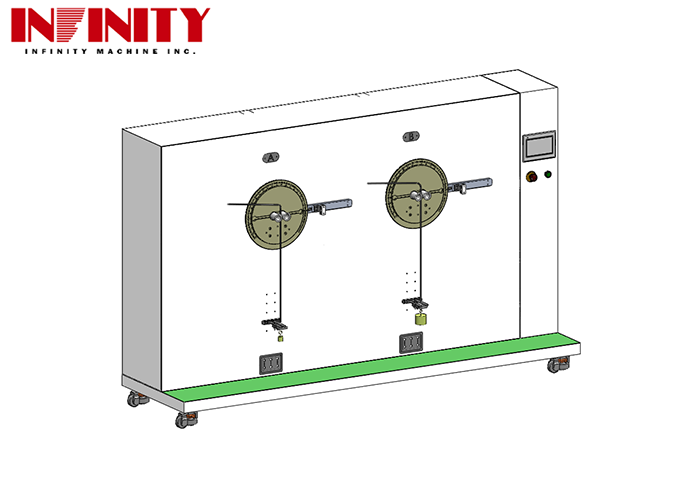

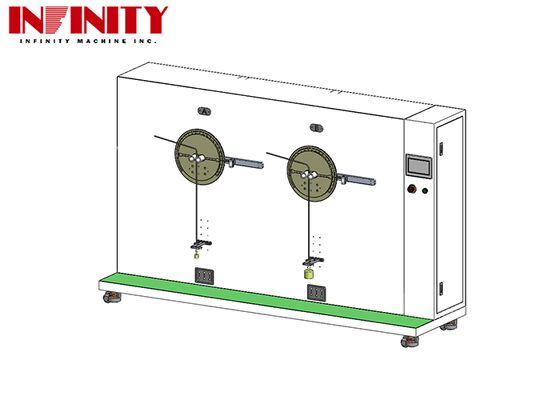

Product Appearance

Packaging and Shipping

Product Packaging

Automotive cables cyclic bending testing equipment is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

Shipping

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
